GIFT Tong Qin team publishes paper at IROS, a premier flagship conference on robotics: AVP Scene Graph: Hierarchical Visual Language Mapping and Navigation for Autonomous Valet Parking

The Innovation Center of Intelligent Connected Electric Vehicles at Shanghai Jiao Tong University, under the guidance of Associate Professor Tong Qin, has published a research paper titled "AVP Scene Graph: Hierarchical Visual Language Mapping and Navigation for Autonomous Valet Parking" at the IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), a leading international conference on robotics. The paper primarily explores a visual-language scene graph designed for Autonomous Valet Parking (AVP) tasks, which effectively enhances the flexibility of AVP functions. The first author is Xiangru Mou, a 2024 Ph.D. candidate at GIFT, and the corresponding author is Associate Professor Tong Qin.

Research Background

Autonomous Valet Parking has become a key application scenario for autonomous driving: drivers can complete automatic cruising control and automatic vehicle recall with just a smartphone command. The implementation of this function relies on vehicle-mounted sensors collecting data during the first entry into a parking lot and constructing a highly-precise parking map in advance. When the vehicle enters the same parking lot again, it can directly recall the existing map, specify a target parking space, and then activate the AVP function to achieve fully autonomous, safe, and precise parking from the entrance to the parking space.

Current Research

Existing parking maps face three major challenges:

1.Limited information dimensions, with only pre-defined categories (e.g., lane lines, arrows) and fail to sufficiently capture useful environmental information (e.g., signs, guide markers);

2.Poor readability and extensibility, hindering the intuitive interaction between the driver and the system;

3.Complex structure, resulting in low efficiency in map reading and updates.

Therefore, it is urgent to construct an AVP map that is well-structured, information-rich, efficient for retrieval, and suitable for human-machine interaction to address current technological gaps.

Research Results

To solve the above problems, this paper constructs a multi-layer scene map for AVP tasks: first, a visual language model is used to extract open-world semantics, which are embedded into the nodes of a vector map; then, the map is abstracted into scenes through bottom-up feature fusion, ultimately forming a clear and informative multi-layer scene map.

In addition, the paper proposes a top-down navigation method: first, a large model is used to achieve human-machine interaction, extracting navigation goals from the driver's instructions; then, the target is located in a top-down manner by leveraging the efficient retrieval of the graph structure; finally, the optimal route was generated from the path planning algorithm to achieve Autonomous Valet Parking.

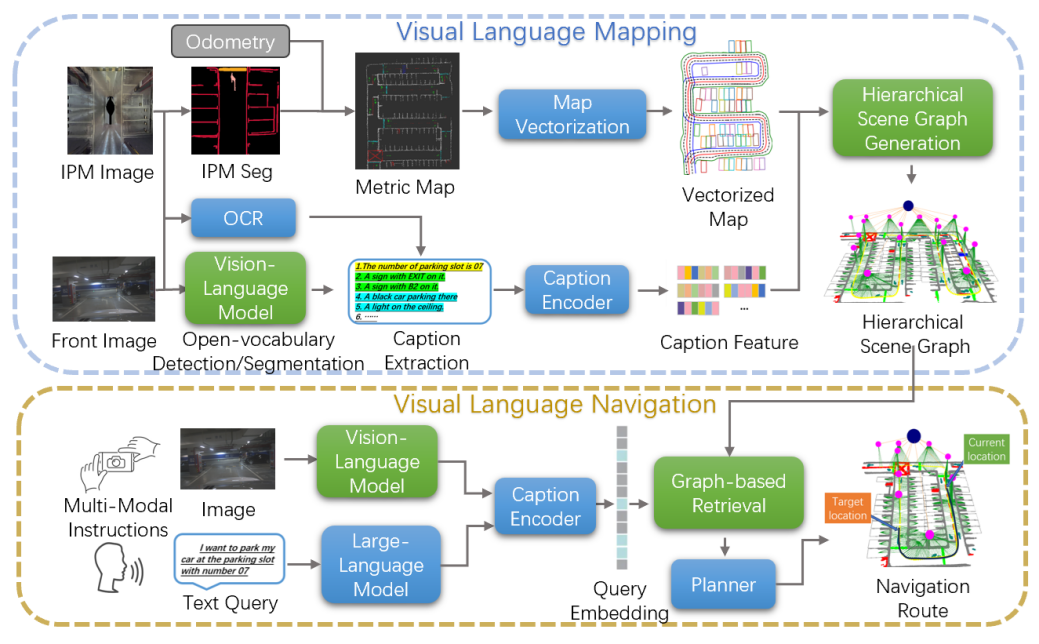

Method Framework Diagram

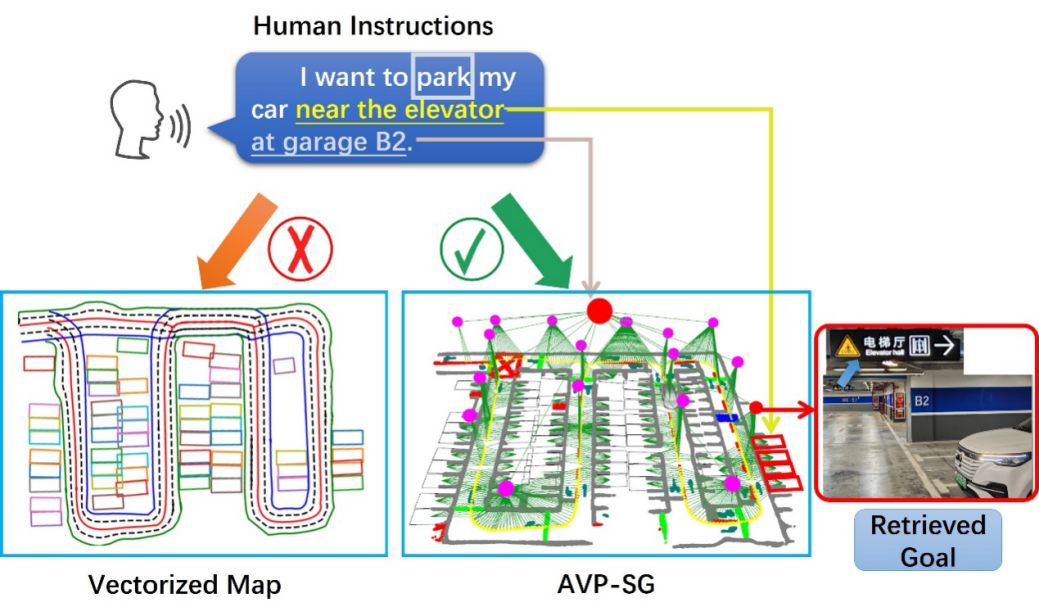

As shown in the figure below, traditional maps exhibit shortcomings in restricted semantics and limited human-machine interaction; whereas the proposed method can extract navigation goals from human instructions such as "Navigate me to the garage exit" or "Park the car next to the elevator hall on B2 floor", achieving flexible and accurate as expected by drivers.
